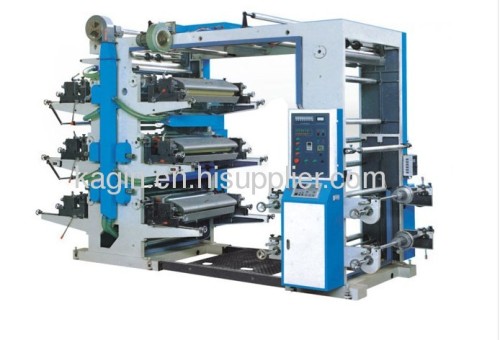

six color flexo printing machine manufacturer from China Kagin Industry Co., LTD.

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: 45-60days

Brand Name: kagin

Packing: in wooden case

Packaging: Others

It is suitable for printing such packing materials as polyethylene bag,etc

Features:

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.
10. With double unwinding &rewinding shaft
Main Technical Parameter:

Type	YT-6600	YT-6800	YT-61000
Max.Effective Printing Width	560mm	760mm	960mm
Max.Web Width	600mm	800mm	1000mm
Max.Printing Speed	50m/min	50m/min	50m/min
Max.Mechanical Speed	60 m/min	60 m/min	60 m/min
Max.Diameter of Roll Material	450mm	450mm	450mm
Internal Diameter of Roll Core	76mm	76mm	76mm
Rang of Repeat Printing Length	191-914mm	191-914mm	191-914mm
Accuracy of Registration	±0.5mm	±0.5mm	±0.5mm
Plate Thickness	2.38mm	2.38mm	2.38mm
Heating Power	9Kw	13.5Kw	18Kw
Total Power	15Kw	19.5Kw	24Kw
Weight	3500kg	4200kg	5000kg
Overall Dimension (L × W × H )mm	4300×1700×2950	4300×1900×2950	4300×2100×2950
